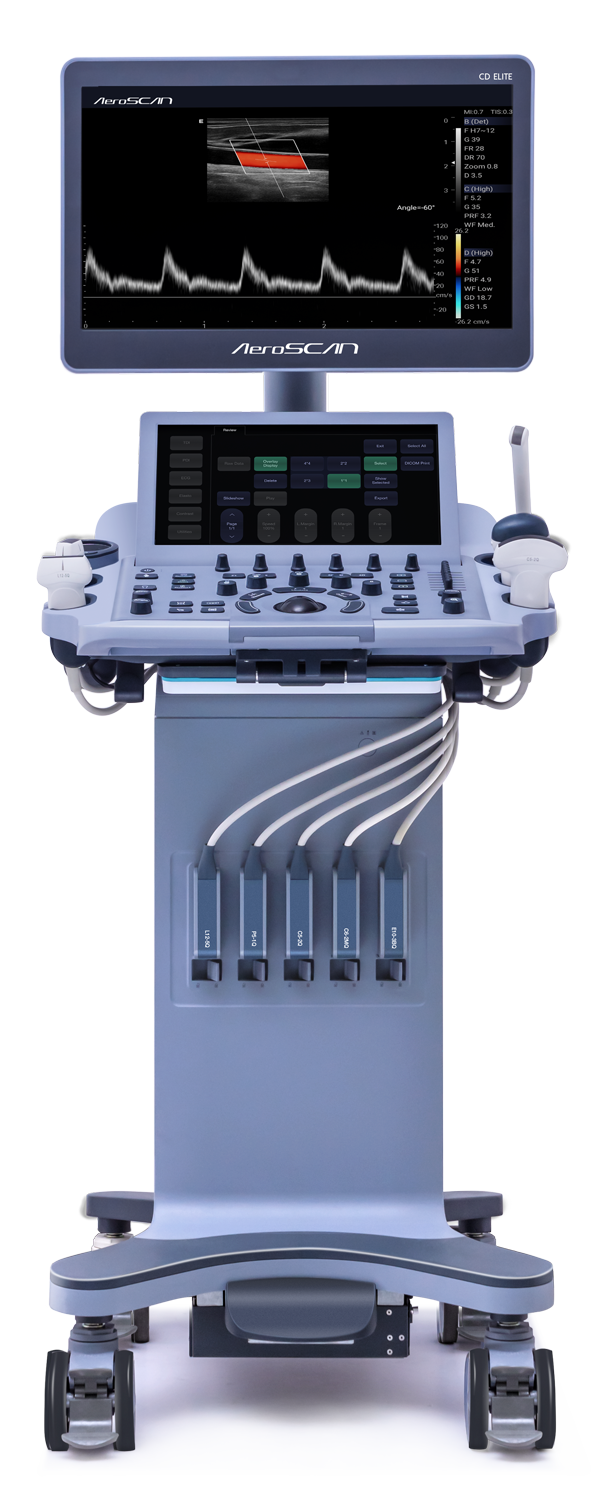

Integrated with compact appearance, cutting-edge technology and intelligent & simple workflow, Aeroscan CD Elite developed with latest generation technologies provides Fast and durability User Experience with flexible Configurations to fit large range of clinical application

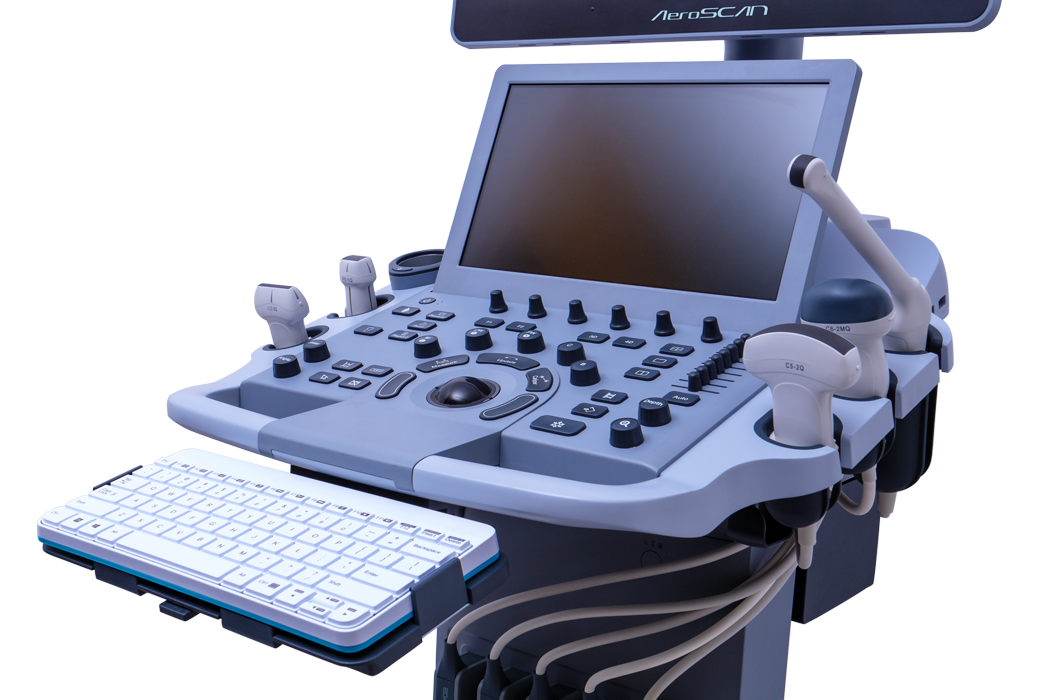

Ergonomics
21.5” High Definition LCD with
Multi-angle viewing Monitor
14” touch screen with
20°adjustable tilt
Hydraulic Height
Adjustment
5 Active Probes
512 SSD Hard Disc
Inbuild Battery Back-up
Output - S Video, USB 2.0, USB 3.0, HDMI, Ethernet
Enhanced Imaging Technologies

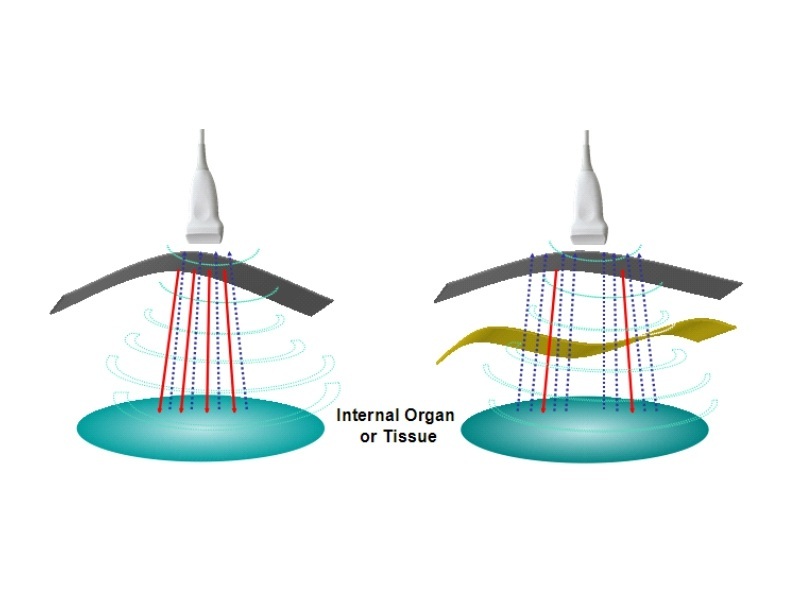

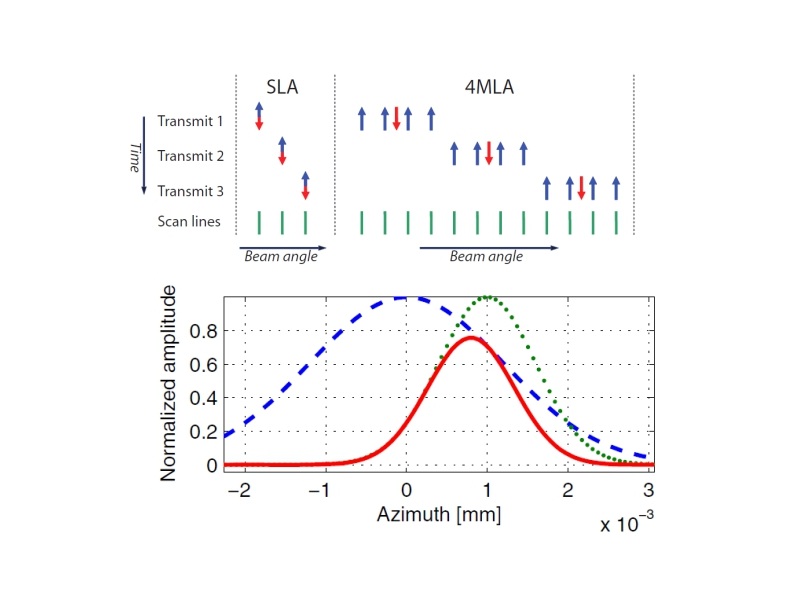

Digital Multi-Beam forming
Digital Multi-Beam forming
New generation beamforming algorithm, supports multiple parallel beam processing, & integrating adaptive phase correction, dynamic aperture, greatly improves resolution and frame rate. Beamforming is used to activate the transducer array elements in a controlled manner during transmission of ultrasound beams and reception of the reflected echoes to form a high-quality B-Mode resolution

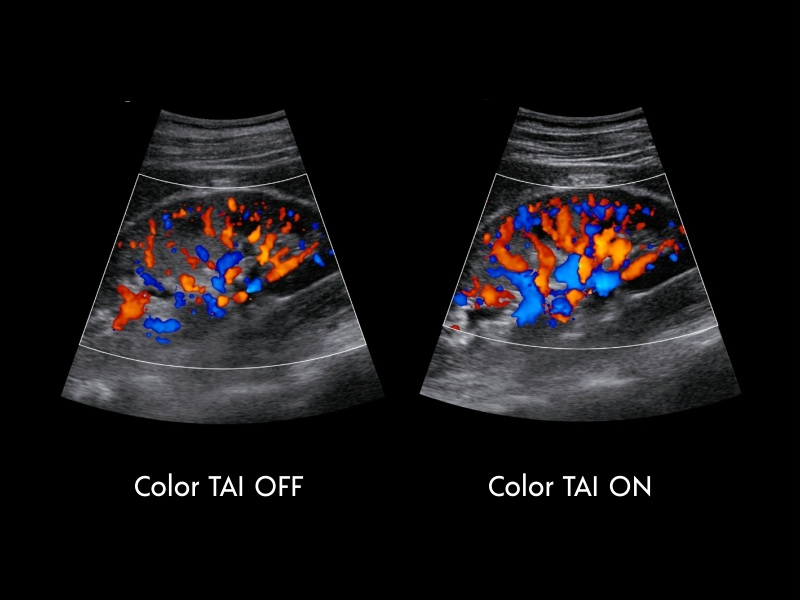

TAI - Tissue Adaptive Imaging
TAI - Tissue Adaptive
Imaging
According to the actual ultrasonic signal in the organization being inspected, B mode and Color mode parameters are automatically adjusted. Different proficiency operators can work in a very short time to obtain excellent consistent scanning results, improving scan efficiency.

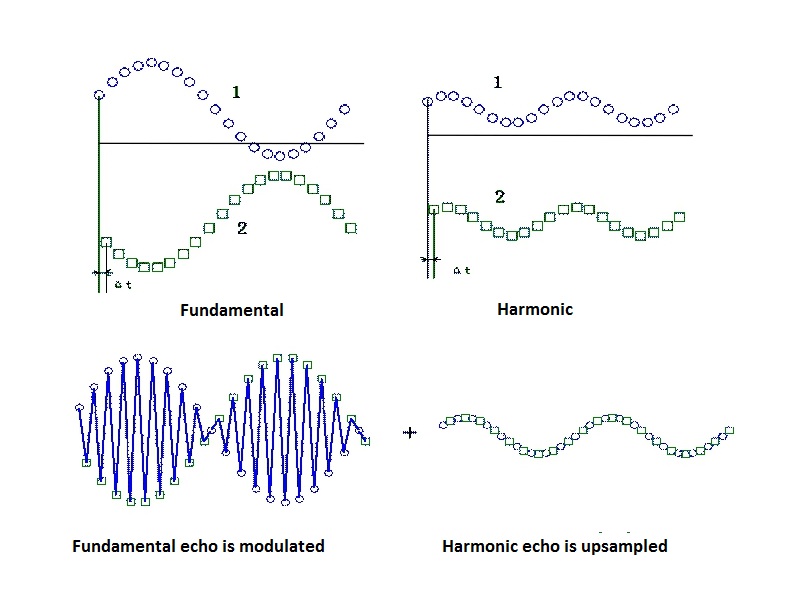

eHI - Harmonic Imaging
eHI - Harmonic
Imaging
eHI launches a reverse wave to offset the fundamental wave, thus maintains the maximum harmonic wave. With the increased harmonic signal, the image is defined by a better contrast resolution with minimum artifacts.

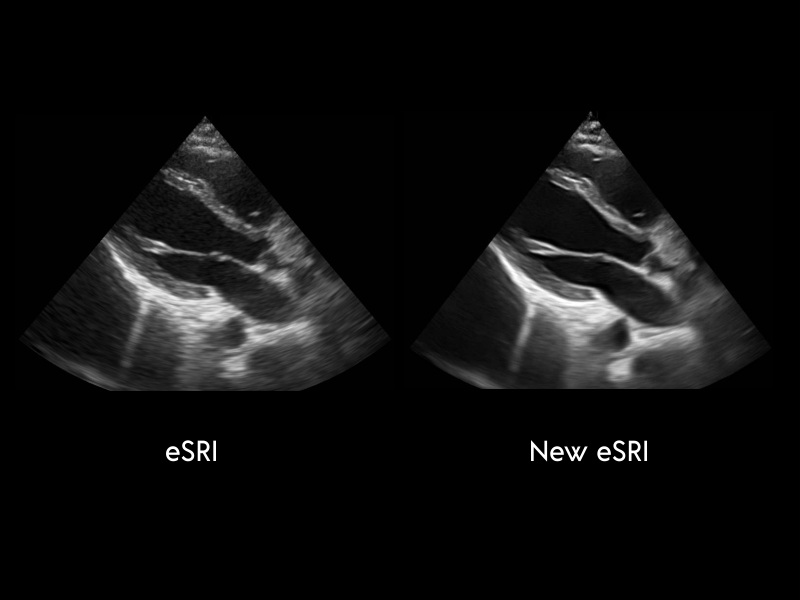

eSRI - Speckle Reduction
eSRI - Speckle
Reduction
eSRI is efficient noise technology that suppresses speckles completely, increasing signal-to-noise ratio and reflecting speed. It eliminates the inherent noise spots & greatly improves the image clarity & contrast resolution which provides more reliable diagnostic images.
SCI - Compounding Imaging
SCI - Compounding
Imaging
By steering the ultrasound beam, SCI is used to improve the contrast resolution, strengthen border detection, combined with a dramatic reduction of tissue speckle.
Advance Features
Trapezoid Imaging
Use trapezoid image to enlarge the imaging area by 30% when performing a real time scan by using linear probes.

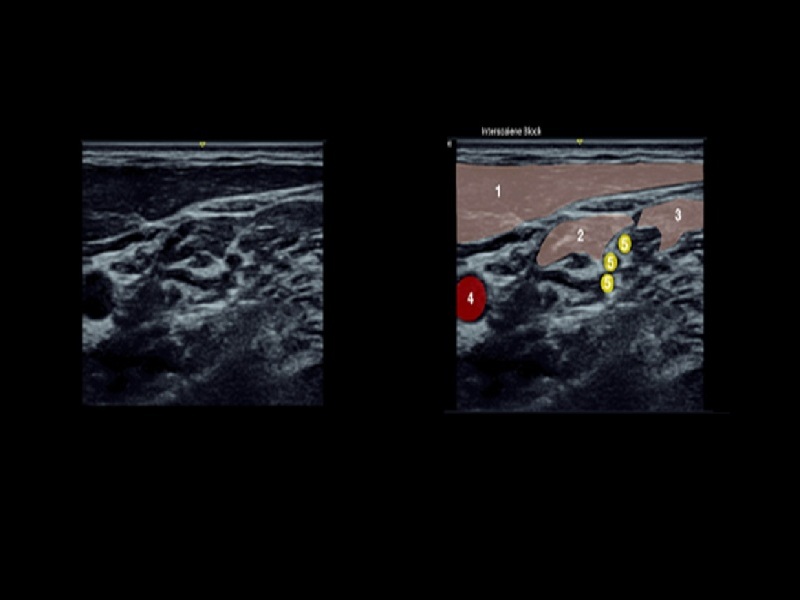

Needle Visualization
It positions the ultrasound beam perpendicular with the needle, in order to enhance the signal strength deflected off of the needle. It Displays the needle brighter and more clearly on the screen, to help biopsy diagnoses be more operable and precise.

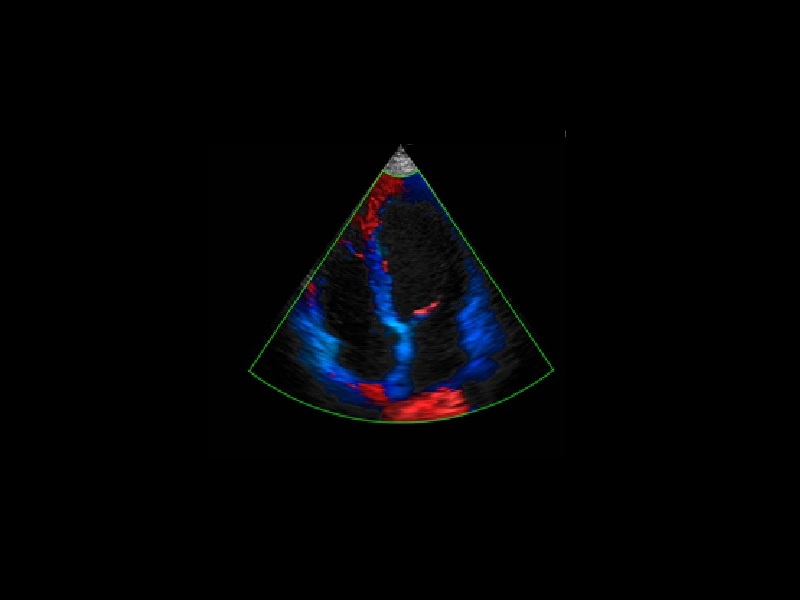

TDI mode-Tissue Doppler Imaging
TDI can provide velocities and other clinical information on myocardial functions, facilitating clinical doctors to analyse and compare motions of different parts of a patient’s heart.

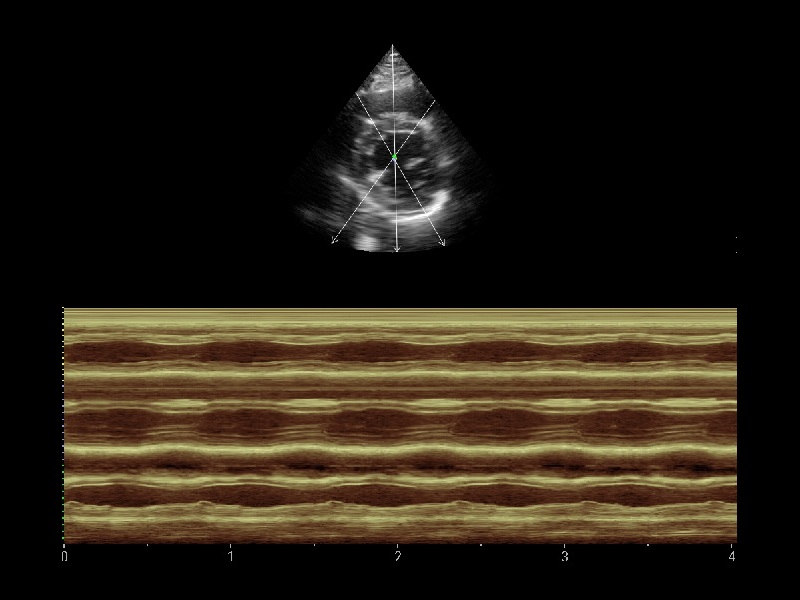

Anatomic M mode
This advanced cardiac technology features three cursors which can be set at any position and angle simultaneously. It offers the best approach to reducing the time-per-patient while maintaining diagnostic precision in addition to the standard cardiac features, acquiring all information even in hard-to-scan situations with difficult heart positioning.

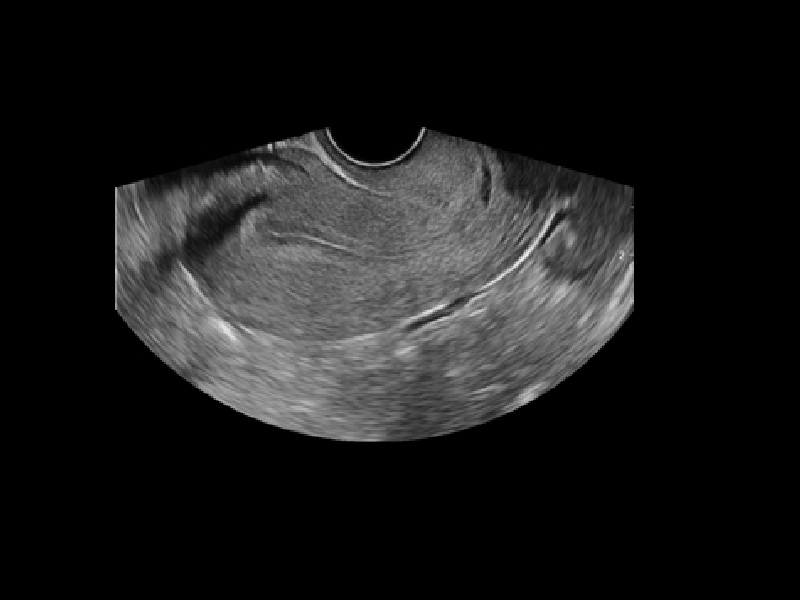

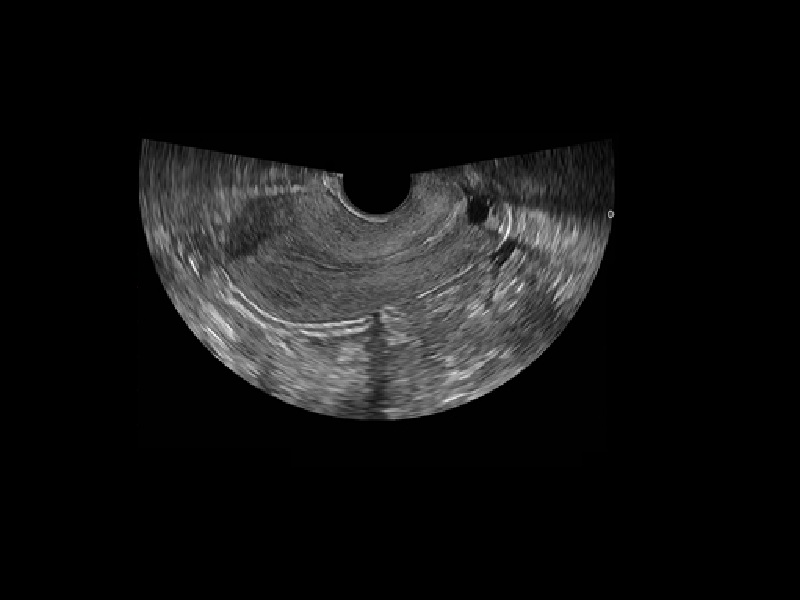

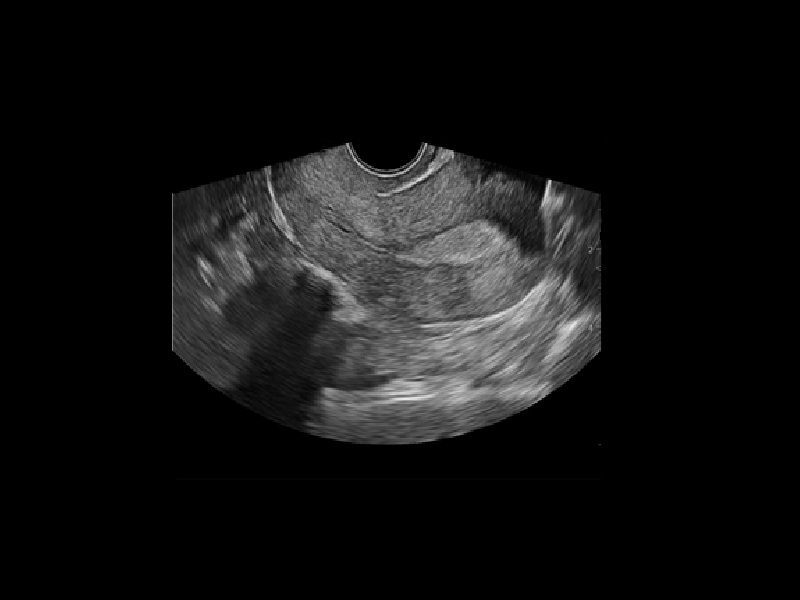

Advanced ET Technology
Aeroscan CD ELITE provides efficient technology on GYN Studies, 200 Degree Field of view Allows visualization of the entire gland from apex to base , 200 degree help to reduce the disconfirm for the GYN scan & Provides large viewing areas.

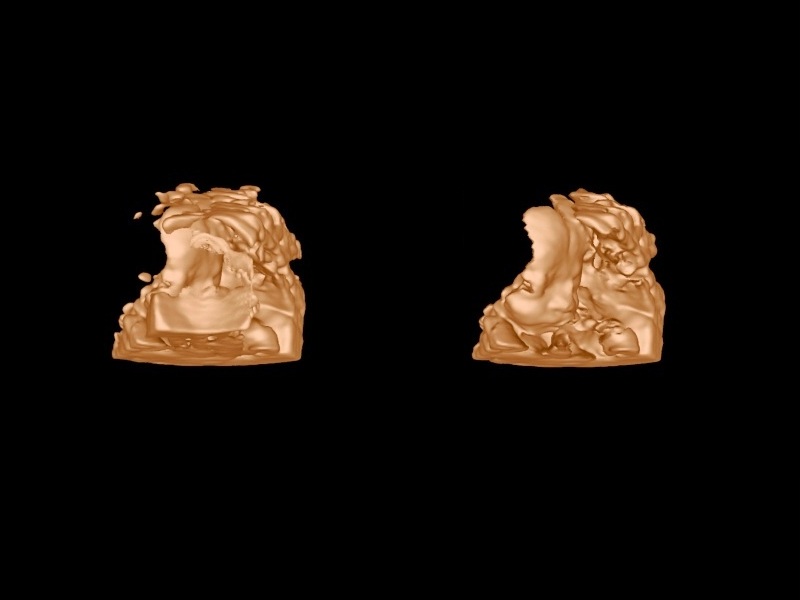

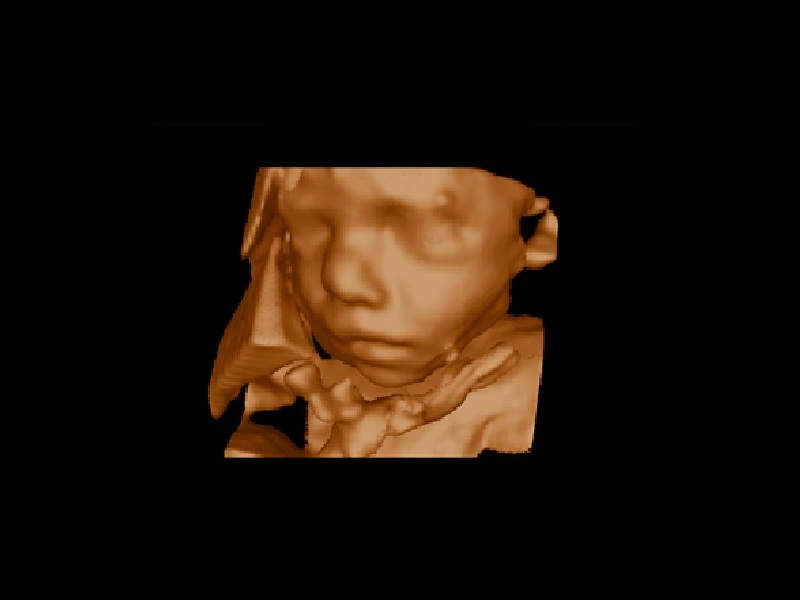

3D/4D Imaging
e-Face is One key optimization of 3D/4D image, it greatly increases the scanning efficiency and save time.
Smart Workflow
Aeroscan's CD E-Lite is well crafted to cater the today’s fast evolving healthcare practices.
Full Screen Zoom
Full Screen zoom mode allows You to hide all the interface button on the screen and optimized the visible imaging Area without any image resolution loss & Provide High definition images
eLearn Instruction software
eLearn instruction tool is an offline basic scanning tool provided on the machine for the users to retouch knowledge on scanning techniques with the reference image.

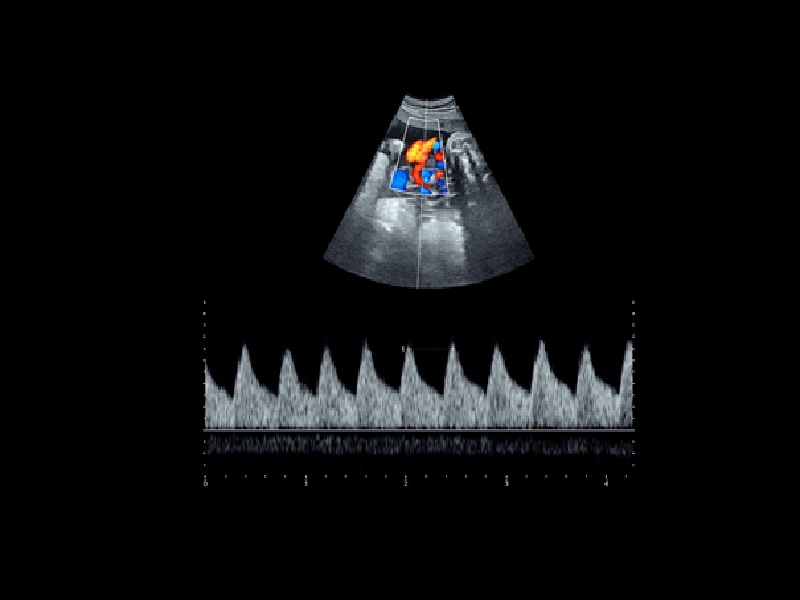

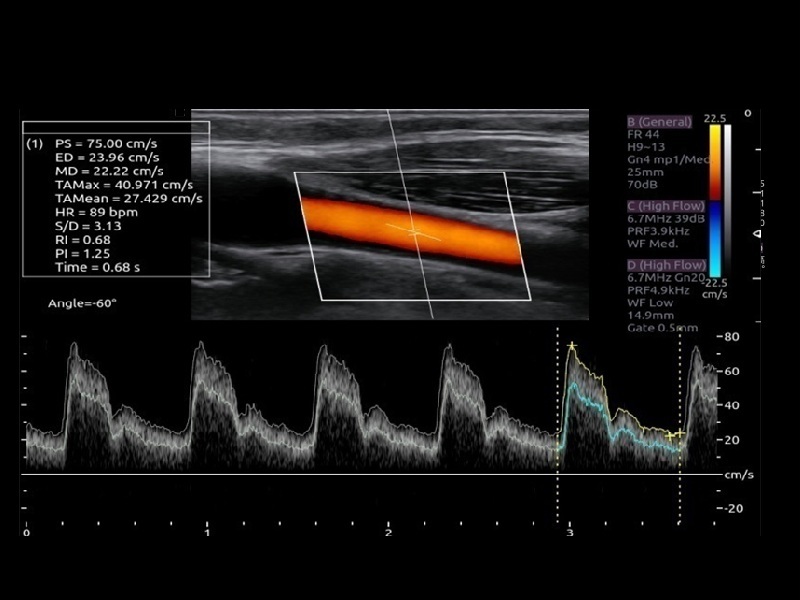

Auto Doppler trace
One Key automatic optimized for PW Doppler waveform base line adjustment, Scale adjustment help to improve the fast-scanning experience .

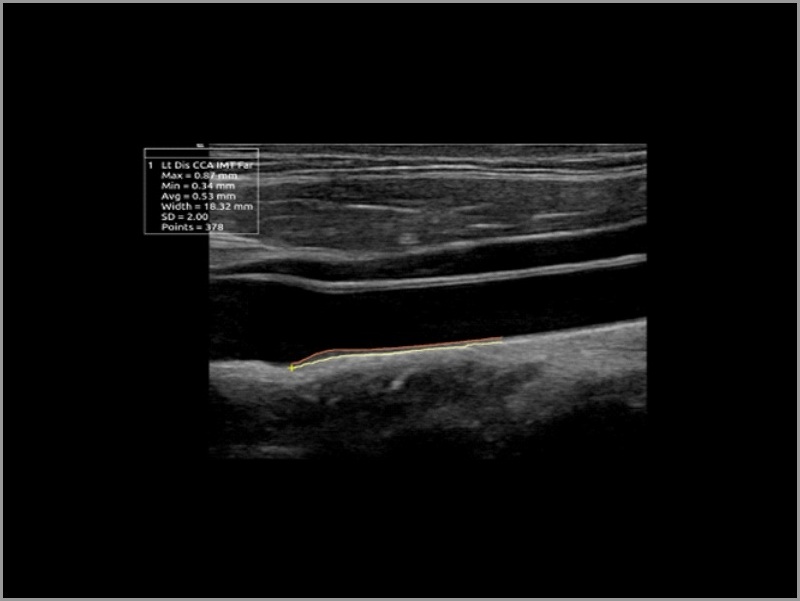

Auto IMT
After selecting an area containing Intima-Media Thickness (IMT), the ultrasound machine can trace and take measurements of the. IMT automatically, just at the touch of a single button, Auto IMT calculation provide the posterior, anterior and Both
B mode one-key Optimization
One key optimization helps to optimize the B mode auto gain adjustment and adjust the b mode gain depends on the tissue and fluid differentiation.

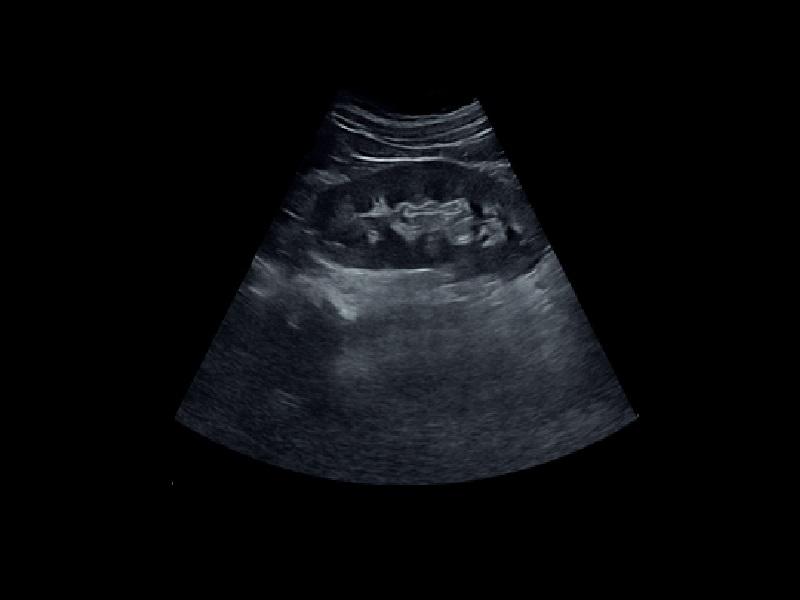

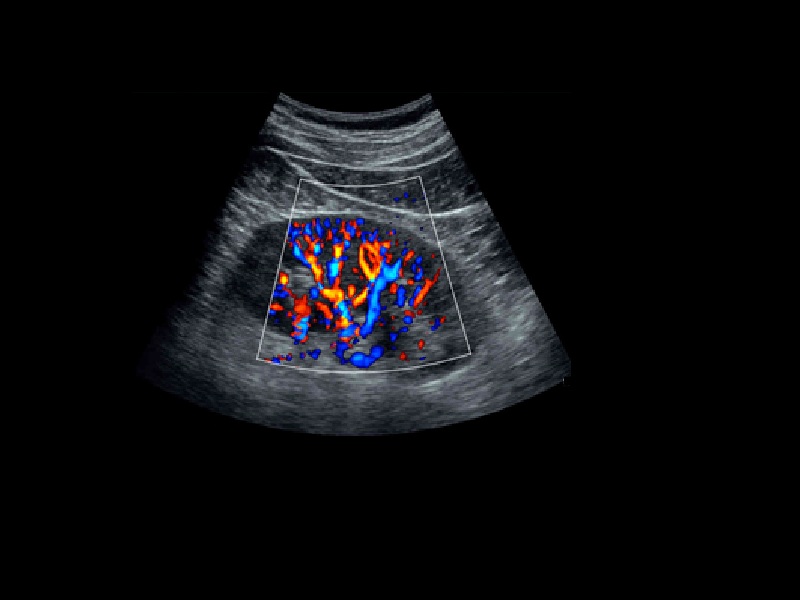

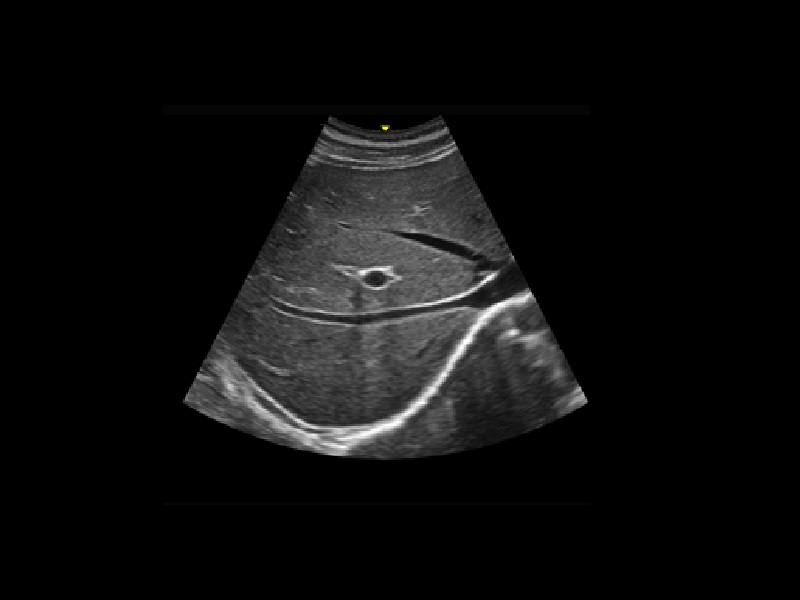

Gallery
