You’re in safe hands with the SONIMAGE® HS2 Portable Ultrasound System. With all the advanced capabilities of the HS1 System, the HS2 System delivers a compact superior imaging system with an intuitive touchscreen user interface for rapid and confident evaluation.
System provides dynamic imaging along with enhanced needle guidance for therapeutic procedures in a compact design. What’s more, the broad frequency linear probe, L18-4, allows you to scan both deep and superficial joints and structures.
-
Superior Image Quality (T2HI, Dual Sonic, iXRET)
-
Simple Needle Visualization (SNV) Technology
-
Easy To Measure (Vascular NAVI, Auto IMT)
-
Innovative Design
-
Intuitive User Interface

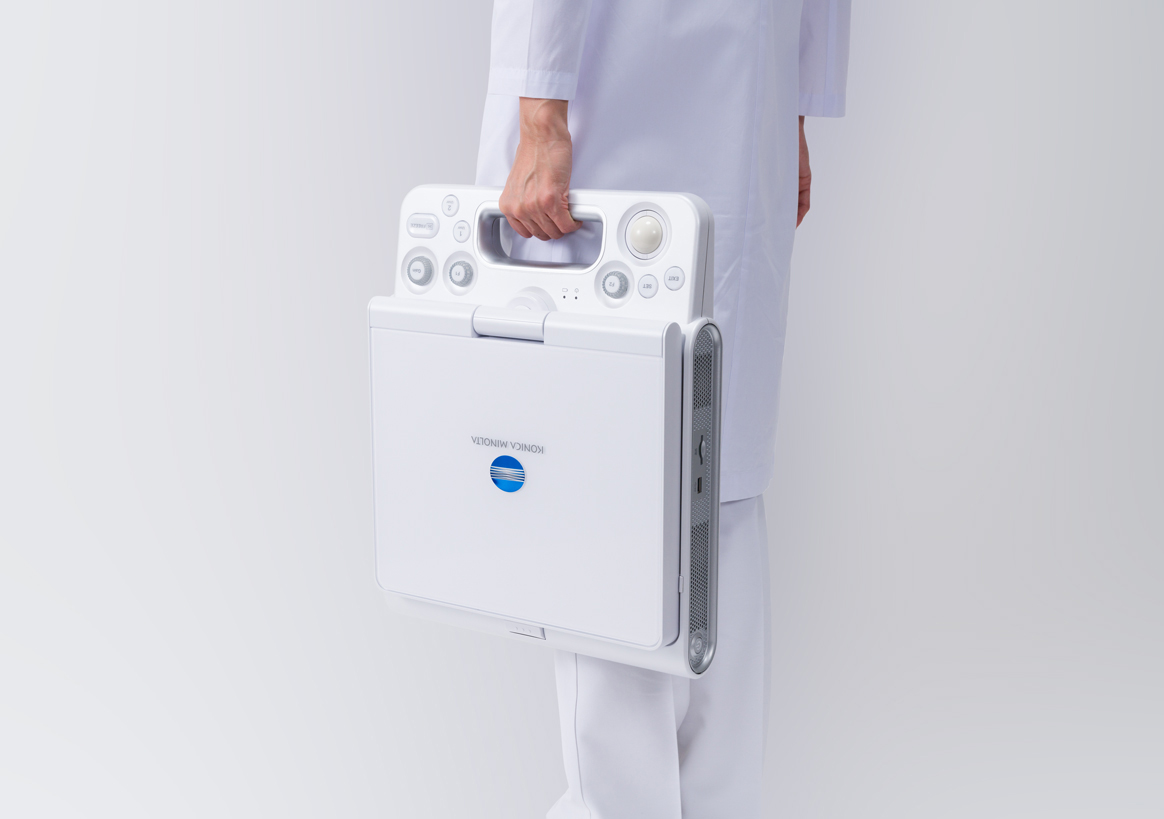

Hand-carried Ultrasound System Designed for You

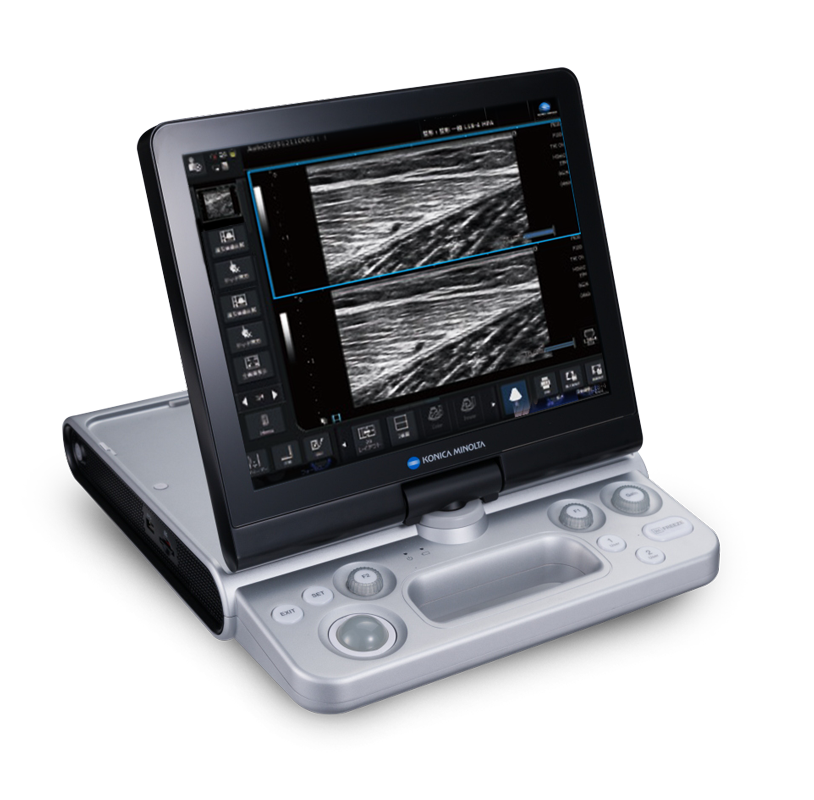

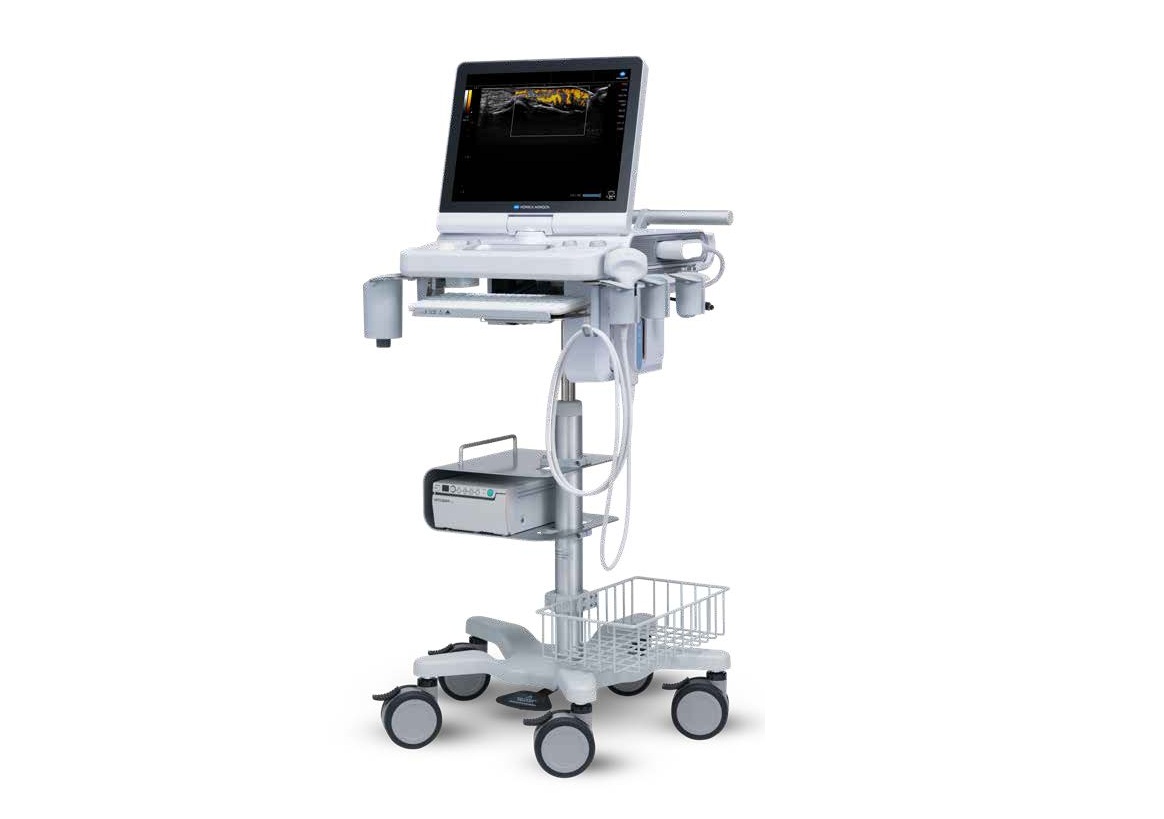

The SONIMAGE HS2 is a Point-of-Care portable ultrasound system designed to support a wide range of applications and patient types. Konica Minolta’s advanced technology features provide high resolution image quality and efficient workflow for daily clinical practice.
Advanced Technology for Superior Image
Unique Nanofabrication Technology
Unique Nanofabrication Technology

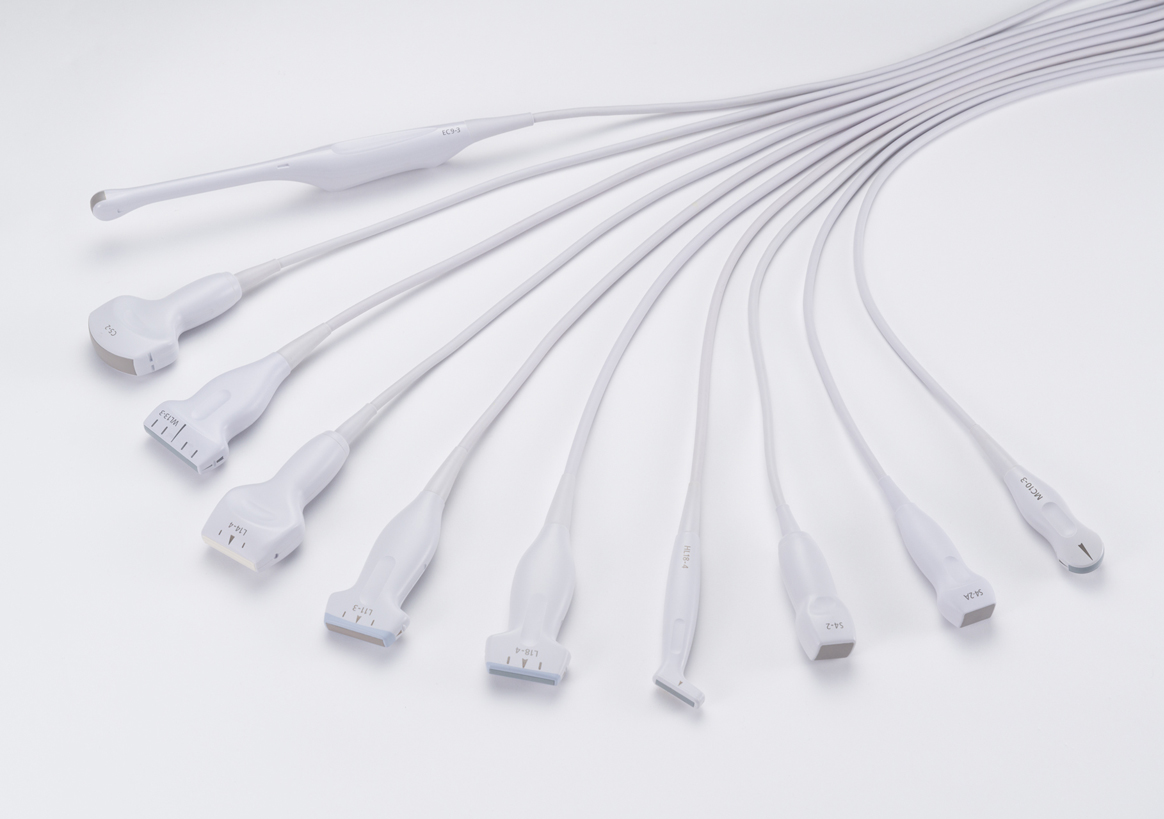

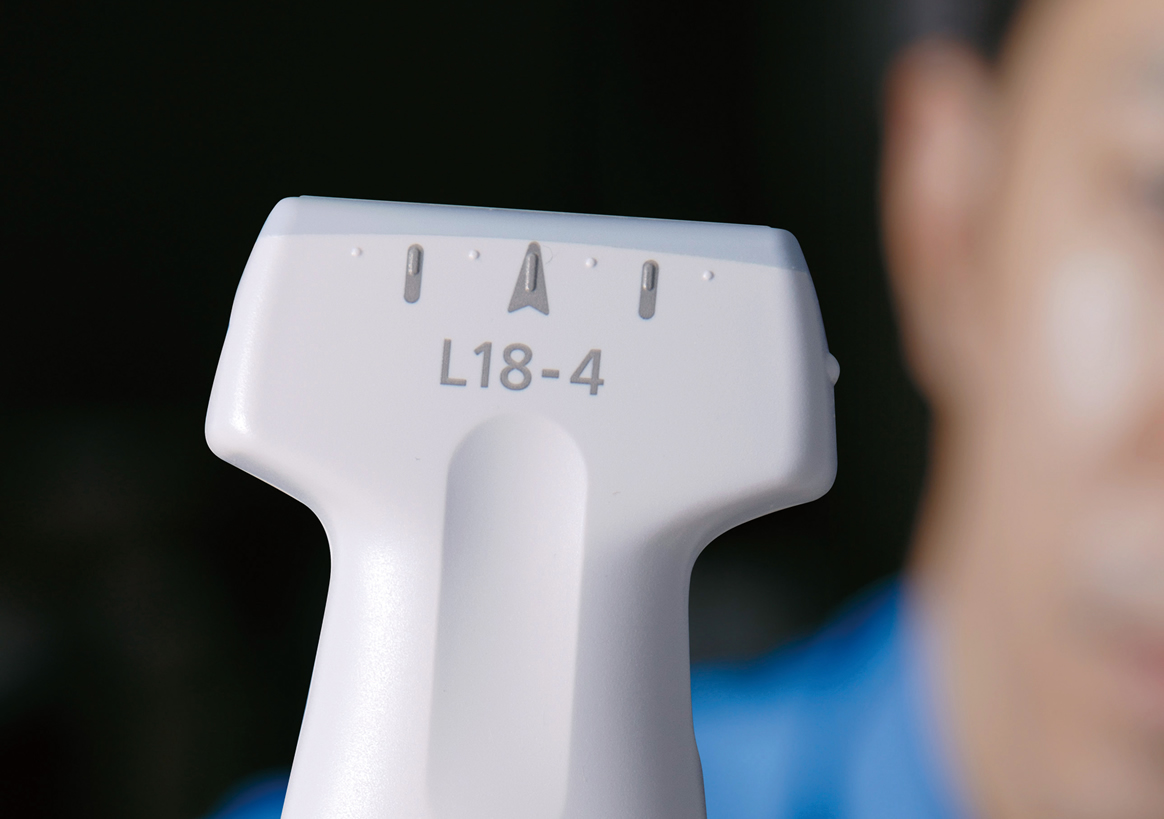

Unique Nanofabrication Technology, combines both material and machining expertise, to produce broad frequency linear probe “L18-4”. It offers both high sensitivity as well as greater penetration.
T2HI (Traid Tissue Harmonic Imaging) Dual Sonic Technology

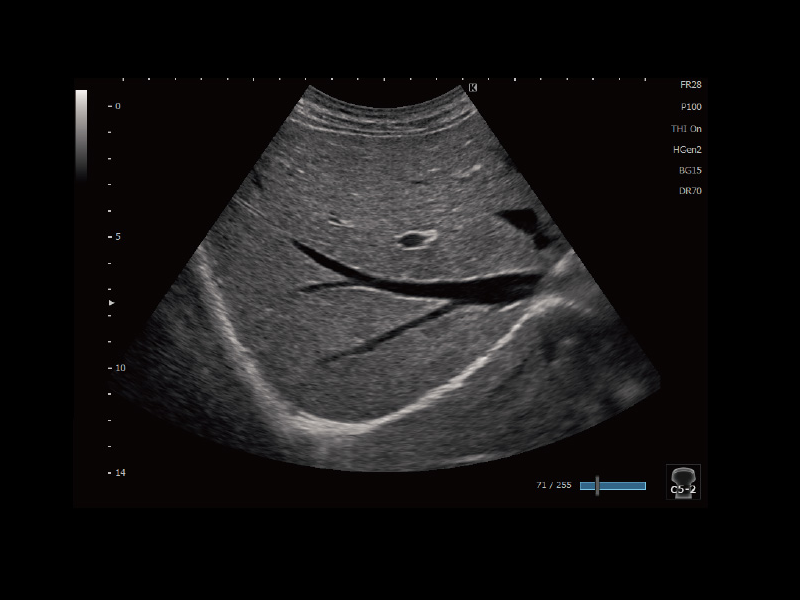

By combining T2HI and Dual Sonic, high quality THI signal is formed around the center of ultrasound beam in receiving area. As a result, it suppresses the acoustic noise and ensure the optimum image from deep to superficial structure.
T2HI (Traid Tissue Harmonic Imaging) Dual Sonic Technology
By combining T2HI and Dual Sonic, high quality THI signal is formed around the center of ultrasound beam in receiving area. As a result, it suppresses the acoustic noise and ensure the optimum image from deep to superficial structure.

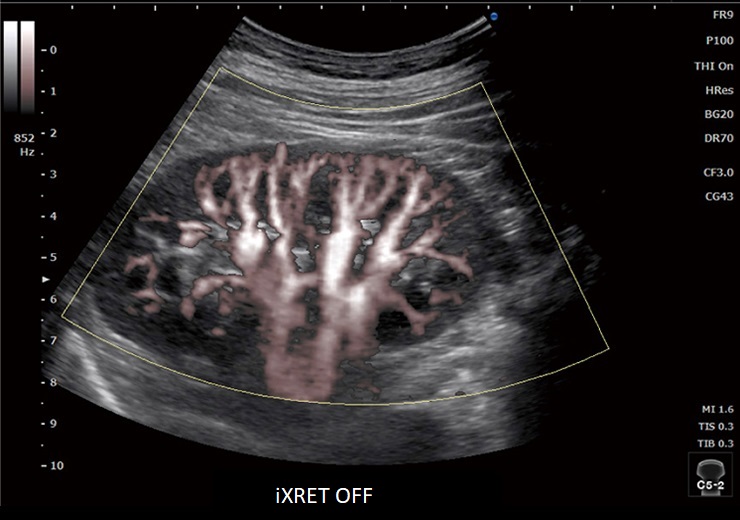

iXRET
iXRET

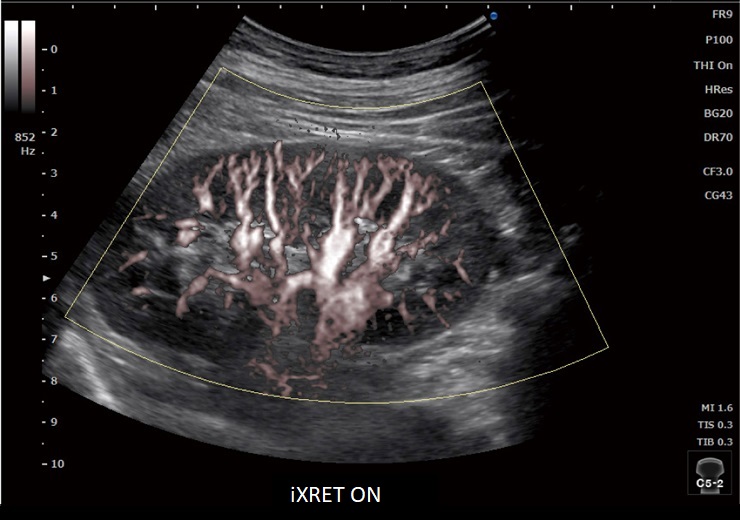

The SONIMAGE HS2 achieves higher resolution and faster frame rates by utilizing Konica Minolta's unique technology "iXRET".

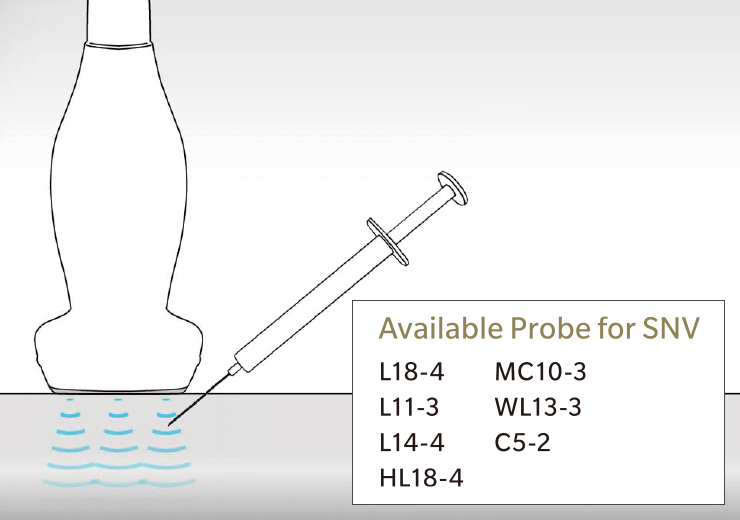

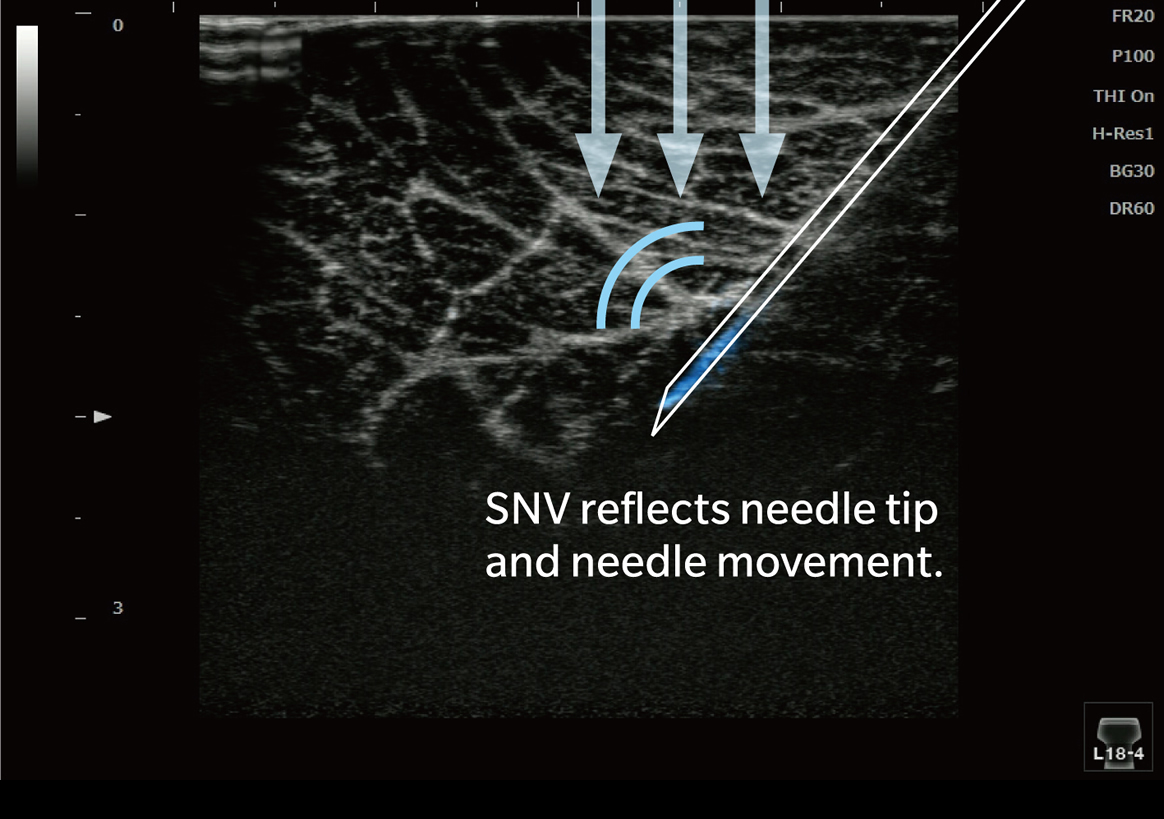

SNV (Simple Needle Visualization)
SNV
Simple Needle Visualization. The SONIMAGE HS2 automatically detects needle insertion. This funciton can be used both 'In plane' and 'Out of plane'.
Efficient Workflow for Daily Clinical Practice

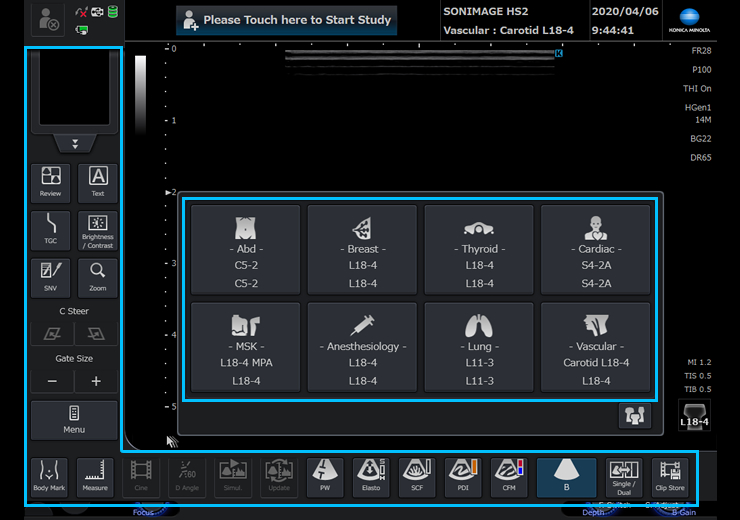

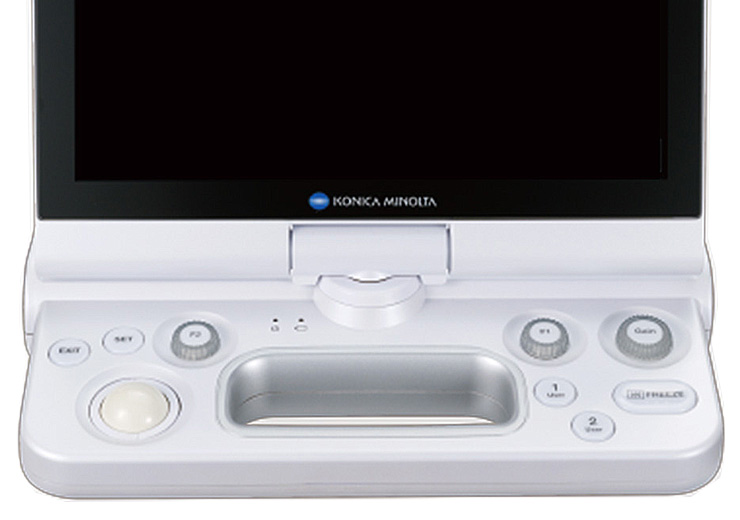

The SONIMAGE HS2 delivers intuitive workflow by customizing 8 physical buttons and touch panel.

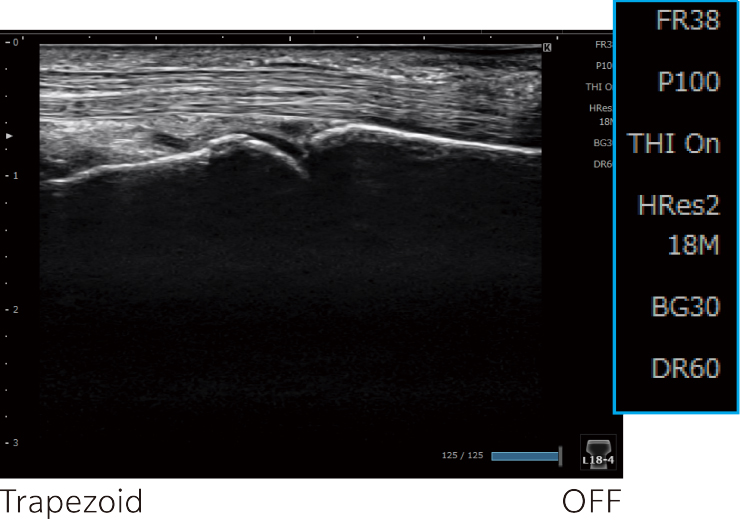

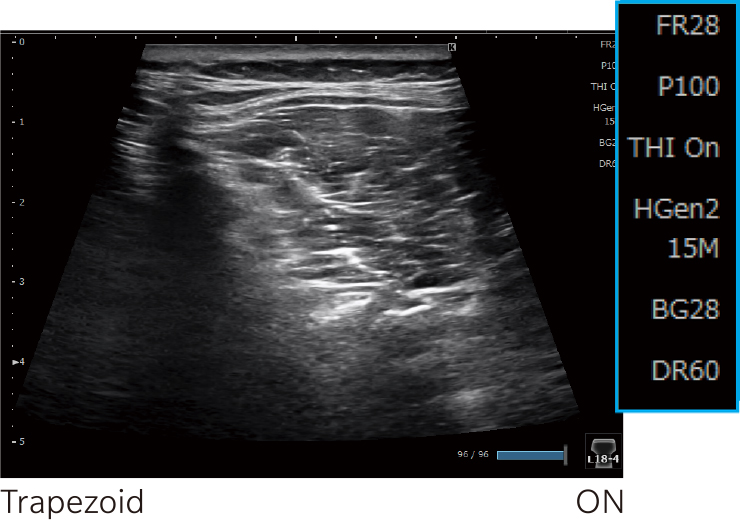

MPA (Multi Parameter Adjuster)
MPA

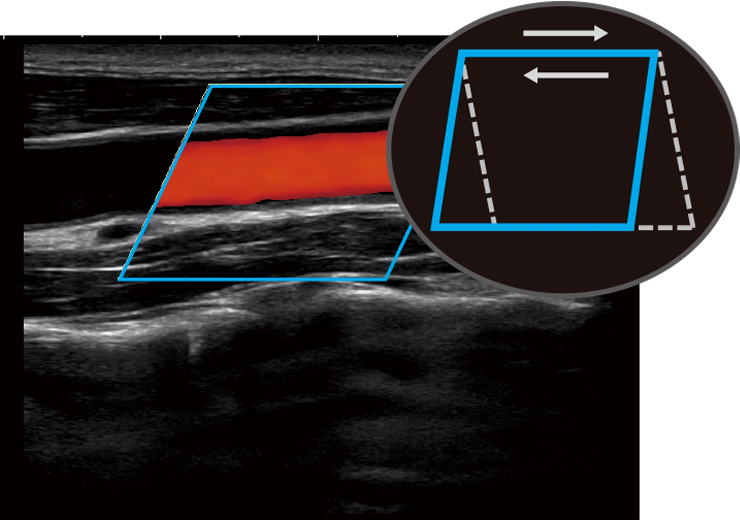

MPA enables to change multiple image parameters like frequency change and turning trapezoid on in conjunction with depth change.

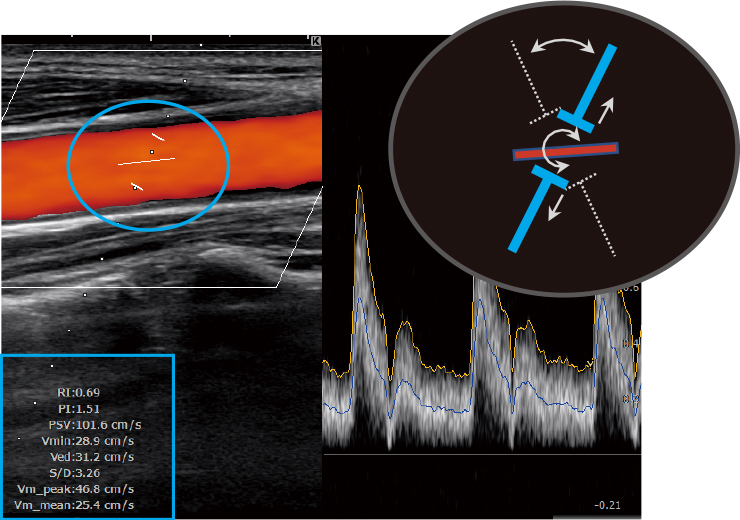

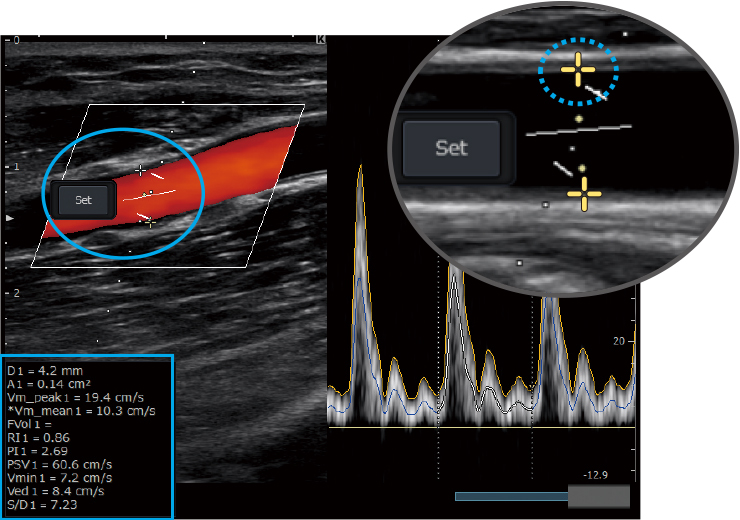

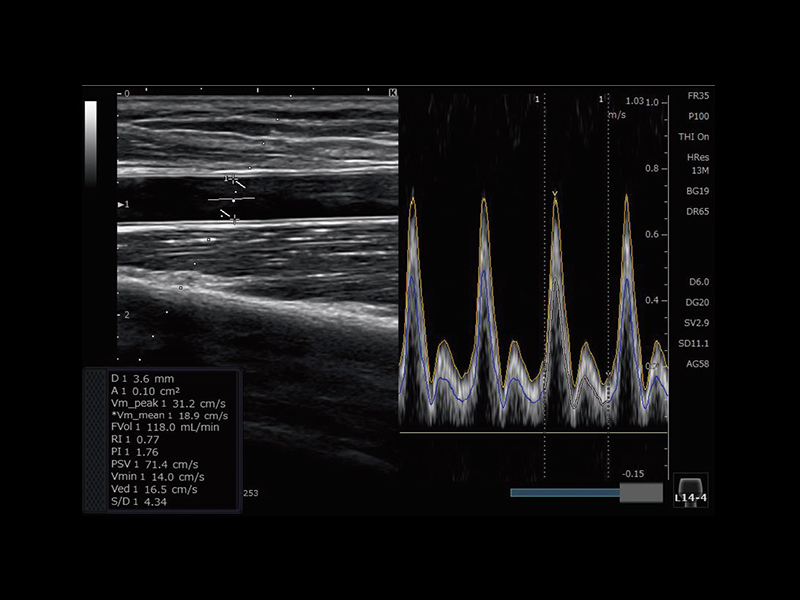

Vascular NAVI
All necessary adjustments and operations are realized automatically. By touching the mode and measurement button, semi-automatic measurement also achieved. This function supports easy workflow for blood vessels and blood flow volume measurements.
Drawing Feature
Drawing Feature

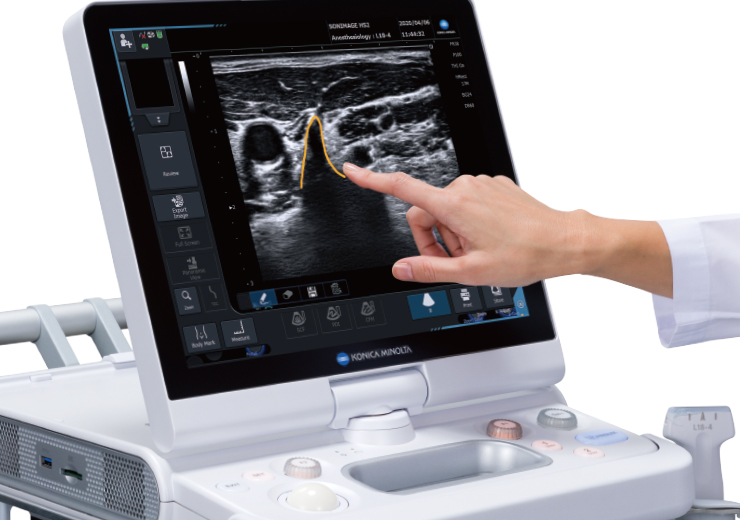

The SONIMAGE HS2 offers the unique capability to write text and draw lines and figures using fingers on the screen. This is an excellent tool for training and communication with patients.

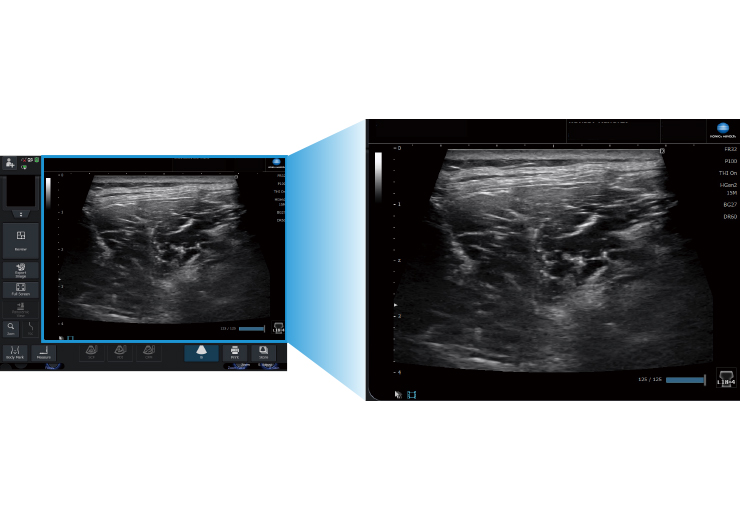

Full Screen Display
Voice Control

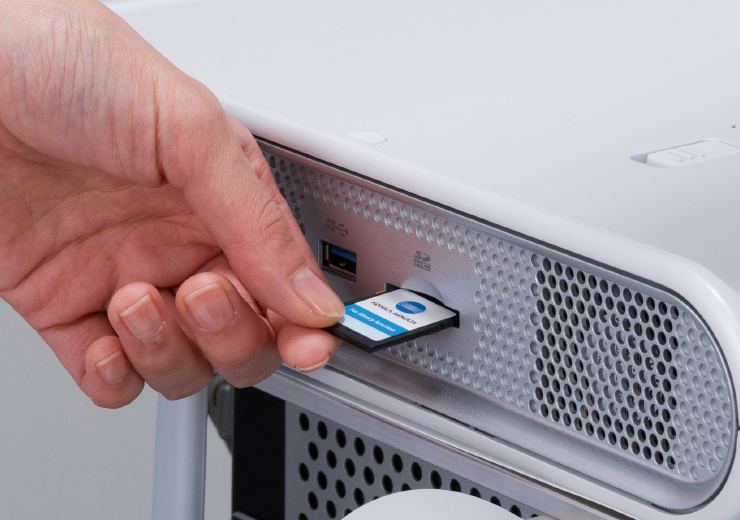

Direct recording to external media

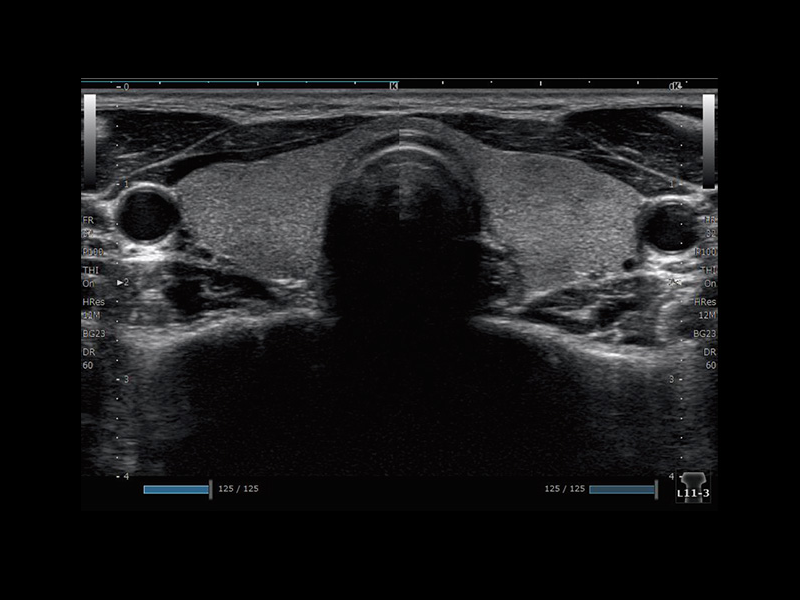

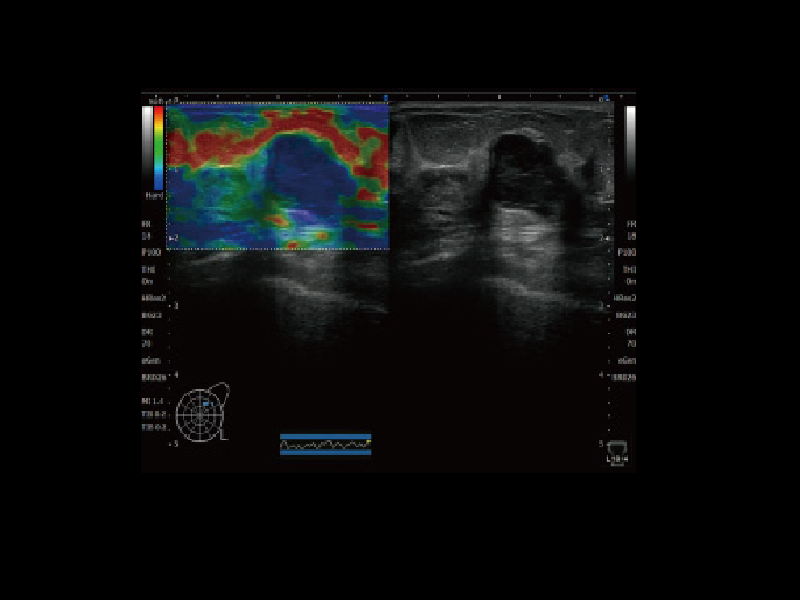

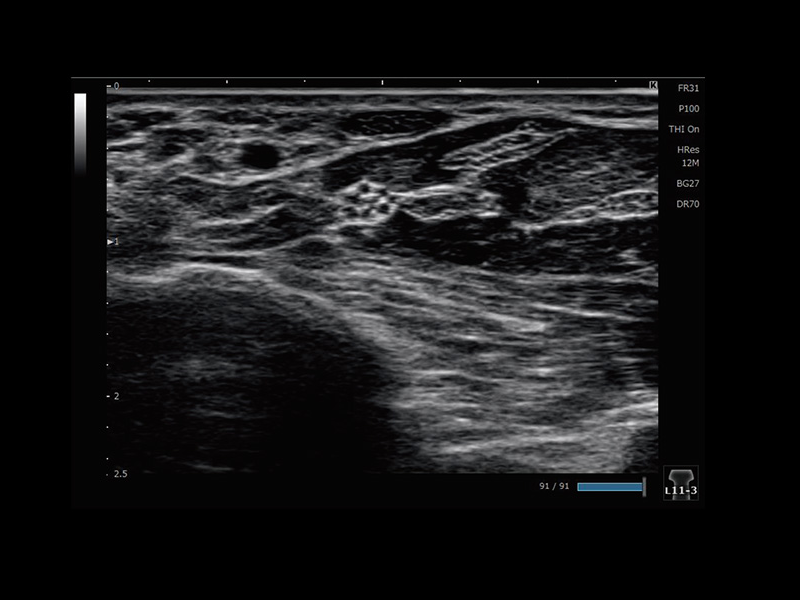

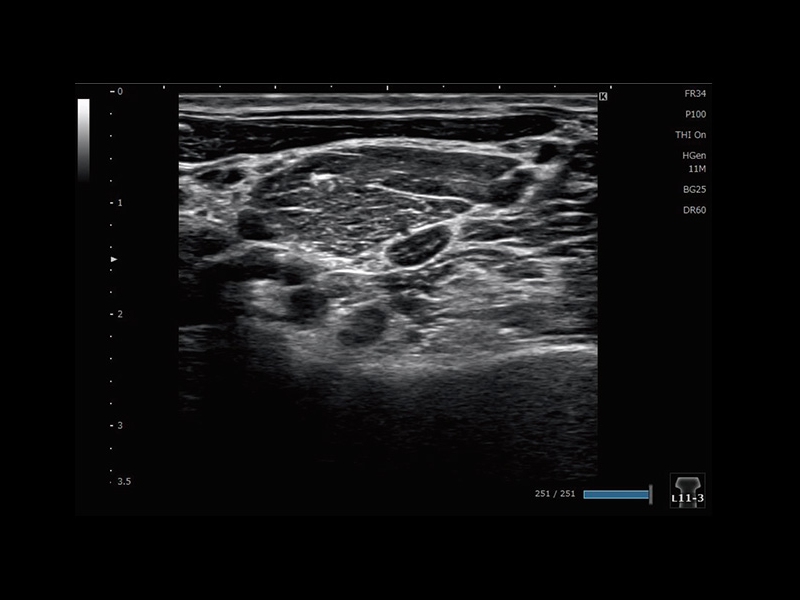

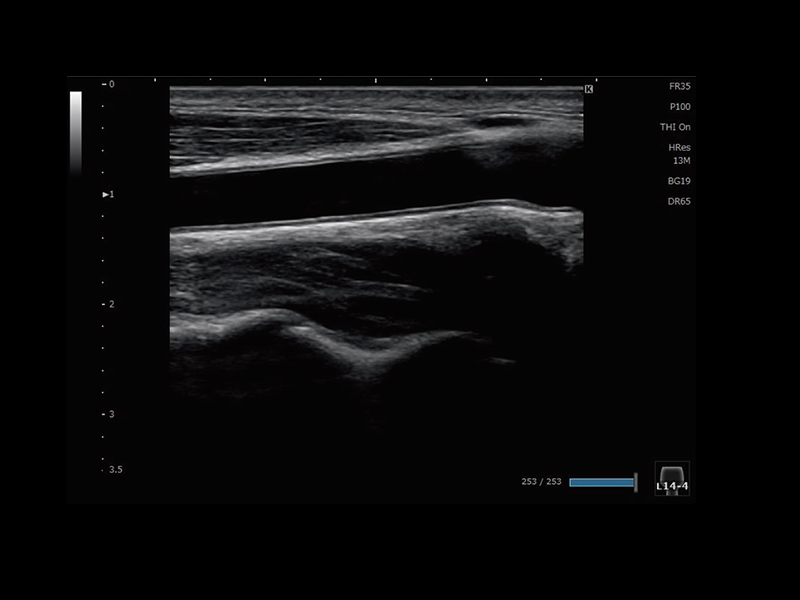

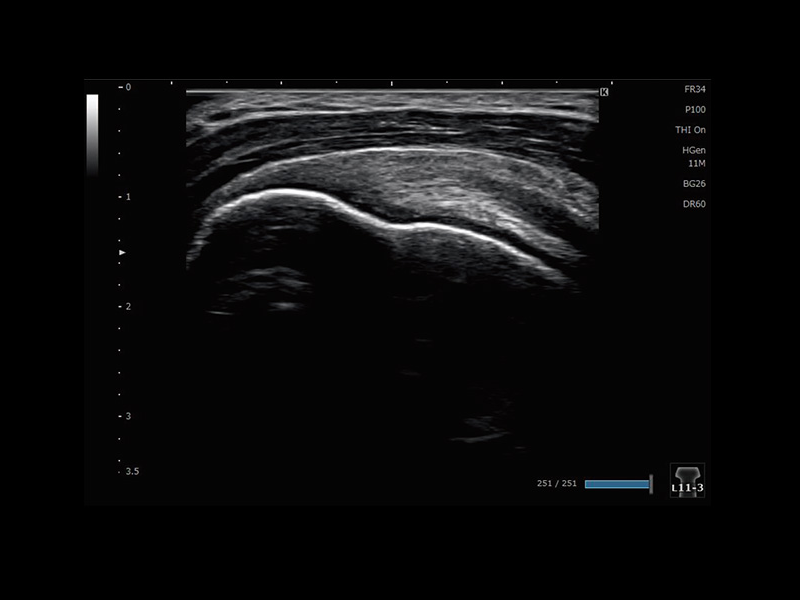

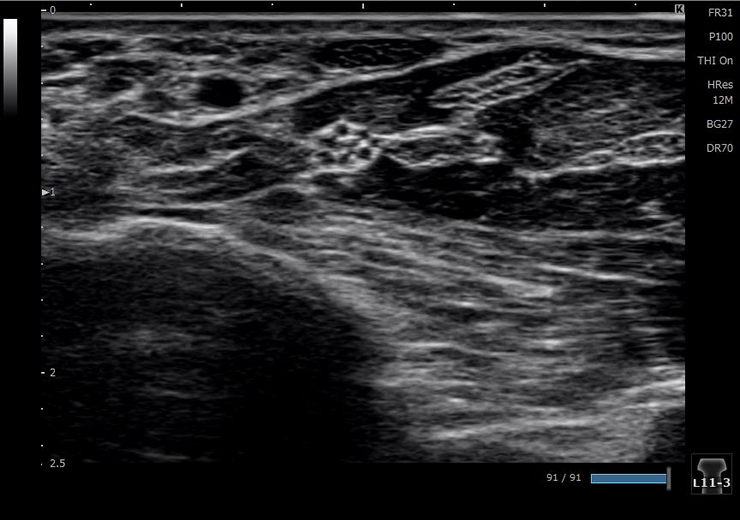

Gallery
